Using a Code Reader to Diagnose Car Problems: A Comprehensive Guide
In today’s technologically advanced automotive landscape, understanding the inner workings of your vehicle has become increasingly important. One of the most valuable tools for any car owner or mechanic is a code reader, also known as an OBD II scanner. These devices can unlock a wealth of information about your car’s health, helping you diagnose problems and potentially save significant repair costs.
This comprehensive guide will walk you through the process of using a code reader to diagnose car problems, from understanding the basics to interpreting the data it provides.

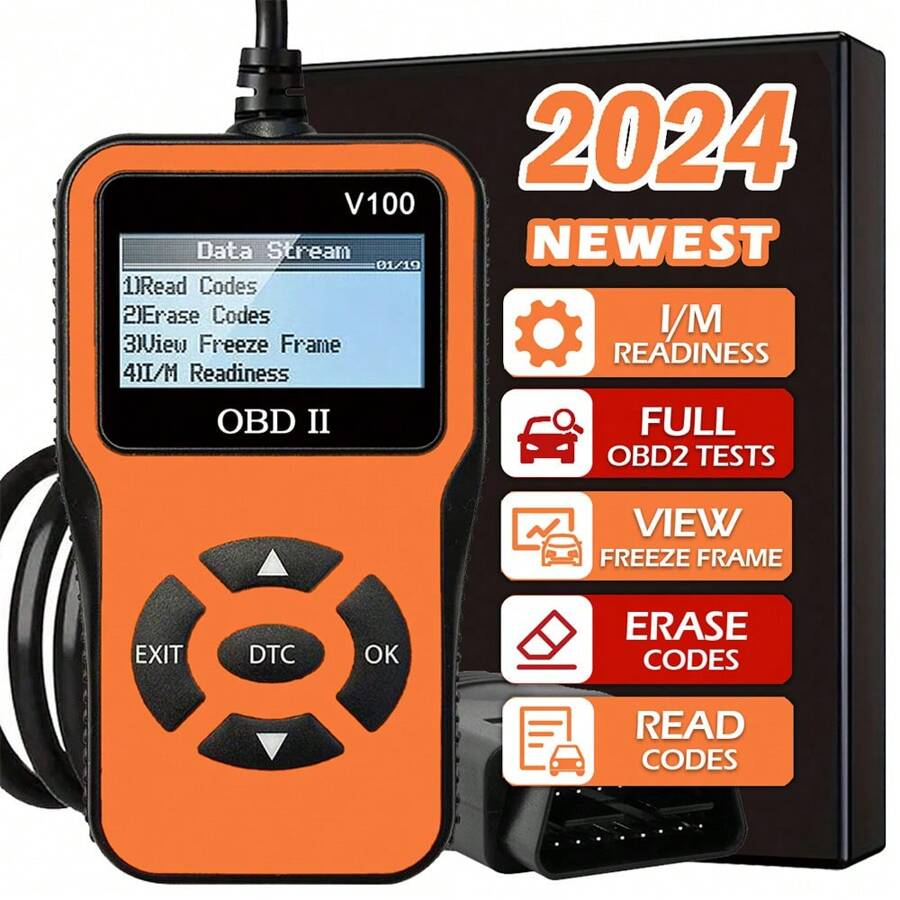

What is a Code Reader?
A code reader is a diagnostic tool that connects to your car’s On-Board Diagnostics II (OBD II) system. This system, mandated in the United States for all cars manufactured after 1996, monitors various aspects of your vehicle’s performance, including the engine, transmission, emissions systems, and more. When the system detects a problem, it stores a Diagnostic Trouble Code (DTC) in the car’s computer. The code reader allows you to access and interpret these DTCs.
Types of Code Readers:
There are various types of code readers available on the market, ranging from basic, inexpensive models to more advanced, feature-rich scanners. Here’s a brief overview:
- Basic Code Readers: These are the simplest and most affordable options. They can typically read and clear DTCs, but offer limited additional features.
- Mid-Range Scanners: These scanners often include additional features such as live data streaming, freeze frame data, and the ability to perform basic tests on certain components.
- Professional-Grade Scanners: These are the most advanced and expensive scanners, offering comprehensive diagnostic capabilities, including advanced data analysis, bi-directional controls (the ability to command the car’s computer to perform specific actions), and access to manufacturer-specific codes.
- Smartphone Apps & Bluetooth Adapters: This is a popular and increasingly affordable option. A small Bluetooth adapter plugs into the OBD II port, and you use a smartphone app to read and interpret the codes. The functionality varies depending on the app.
Why Use a Code Reader?
Using a code reader offers several advantages:
- Early Problem Detection: It allows you to identify potential problems before they escalate into major and costly repairs.
- Informed Decision-Making: By understanding the nature of the problem, you can make more informed decisions about how to proceed with repairs.
- Cost Savings: You can avoid unnecessary trips to the mechanic by diagnosing simple problems yourself.
- Second Opinion: You can use the code reader to verify the diagnosis provided by a mechanic, ensuring you are not being misled.
- DIY Repairs: If you’re comfortable working on your car, the code reader can help you pinpoint the exact component that needs to be replaced.
How to Use a Code Reader:
Here’s a step-by-step guide on how to use a code reader to diagnose car problems:
-
Locate the OBD II Port: The OBD II port is typically located under the dashboard, on the driver’s side. It’s usually a 16-pin connector. If you’re unsure of its location, consult your car’s owner’s manual.
-
Connect the Code Reader: Plug the code reader into the OBD II port. Ensure it’s securely connected.
-
Turn on the Ignition: Turn the ignition key to the "on" position, but do not start the engine. This provides power to the car’s computer.
-
Power on the Code Reader: Most code readers will power on automatically when connected to the OBD II port. If not, press the power button.
-
Select "Read Codes" or "Scan for Codes": Navigate the code reader’s menu to find the option to read or scan for codes. This may be labeled as "Read Codes," "Scan," or something similar.
-
Wait for the Scan to Complete: The code reader will scan the car’s computer for stored DTCs. This process may take a few seconds.
-
View the DTCs: Once the scan is complete, the code reader will display any stored DTCs. Each code is typically a five-character alphanumeric code (e.g., P0301).
-
Record the Codes: Write down all the DTCs displayed by the code reader. This will be helpful when researching the meaning of the codes.
-
Research the DTCs: This is a crucial step. Use a reliable online database, repair manual, or code reader’s built-in lookup function to determine the meaning of each DTC. For example, a code like P0301 typically indicates a misfire in cylinder 1.
-
Interpret the Codes: Once you understand the meaning of each DTC, analyze the codes to identify the potential cause of the problem. Consider factors such as the frequency of the code, any associated symptoms, and the car’s recent history.
-
Consider Freeze Frame Data (If Available): Many code readers provide freeze frame data, which is a snapshot of the car’s operating conditions at the moment the DTC was stored. This data can provide valuable clues about the cause of the problem. Look for parameters like engine RPM, coolant temperature, and fuel trim.
-
Perform Further Diagnosis (If Necessary): The DTCs and freeze frame data may provide a clear indication of the problem, but sometimes further diagnosis is required. This may involve visual inspections, component testing, or consulting a repair manual.
-
Clear the Codes (Optional): After you have diagnosed and repaired the problem, you can clear the DTCs using the code reader. Select the "Clear Codes" or "Erase Codes" option from the menu.
Important Considerations:
- Not All Codes Mean Immediate Repair: Some codes may be triggered by temporary or intermittent problems. Consider the frequency of the code and any associated symptoms before proceeding with repairs.
- Underlying Problems: A DTC may indicate a symptom of a larger problem. For example, a code related to the oxygen sensor may be caused by a vacuum leak or a faulty catalytic converter.
- Manufacturer-Specific Codes: Some manufacturers use their own proprietary codes, which may not be included in the standard OBD II database. You may need a more advanced scanner or access to manufacturer-specific information to interpret these codes.
- Safety First: Always prioritize safety when working on your car. Disconnect the battery before performing any electrical repairs.
- Consult a Professional: If you’re unsure about how to diagnose or repair a problem, it’s always best to consult a qualified mechanic.
Interpreting Common Codes:
Here are a few examples of common DTCs and their potential meanings:
- P0300: Random/Multiple Cylinder Misfire Detected
- P0171: System Too Lean (Bank 1)
- P0420: Catalyst System Efficiency Below Threshold (Bank 1)
- P0113: Intake Air Temperature Sensor Circuit High Input
- P0505: Idle Air Control System Malfunction
Beyond Basic Code Reading:
Advanced code readers offer features that can significantly enhance your diagnostic capabilities:
- Live Data Streaming: This allows you to monitor real-time data from various sensors and components, providing valuable insights into how your car is performing.
- Bi-Directional Controls: These features allow you to command the car’s computer to perform specific actions, such as activating a fuel pump or cycling an ABS module. This can be helpful for testing components and verifying repairs.
- Actuation Tests: Actuation tests allow you to activate specific components, such as injectors or solenoids, to check their functionality.
- Freeze Frame Data: As mentioned earlier, freeze frame data provides a snapshot of the car’s operating conditions at the moment the DTC was stored.
Conclusion:
A code reader is an invaluable tool for any car owner or mechanic. By understanding how to use a code reader to diagnose car problems, you can save money, make informed decisions, and potentially avoid costly repairs. Remember to research the DTCs, consider the associated symptoms, and consult a professional if you’re unsure about how to proceed. With the right tools and knowledge, you can keep your car running smoothly for years to come. Remember to always prioritize safety when working on your car.
